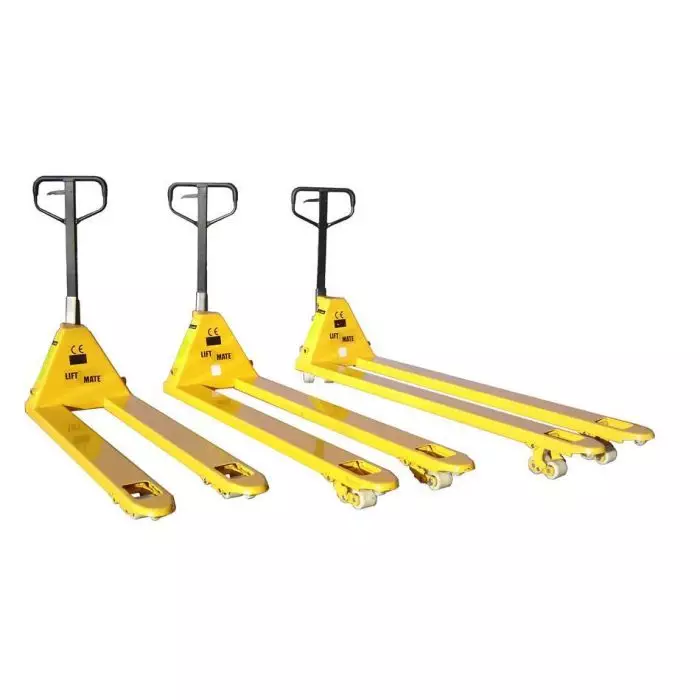

EXTRA LONG PALLET TRUCKS - LTMA20 RANGE
The LTMA20 Pallet Trucks with long forks can be used for handling special pallets with board, glass or other unusually long loads.
Extra Long Pallet Trucks - LTMA20 Range
Product Overview
The Extra Long Pallet Trucks in the LTMA20 range are designed to handle oversized loads and special pallets, such as those used for boards, glass, or other unusually long items. These pallet trucks are also suitable for transporting two standard pallets simultaneously, providing an economical solution for handling non-standard loads.
Key Features
- Extended Fork Lengths: Available in fork lengths of 1500 mm, 1800 mm, and 2000 mm to accommodate various load sizes.
- High Load Capacity: Models support capacities of 2000 kg or 2500 kg, suitable for heavy-duty applications.
- Durable Construction: Built with robust materials to withstand demanding industrial environments.
- Versatile Width Options: Offered in widths over forks of 540 mm, 680 mm, and 520 mm to suit different pallet sizes.
- Efficient Handling: Designed for smooth maneuverability, enhancing productivity in material handling tasks.
Specifications
| Model | Capacity (kg) | Fork Length (mm) | Width Over Forks (mm) |
| LTMA20-540X1500 | 2000 | 1500 | 540 |
| LTMA20-540X1800 | 2000 | 1800 | 540 |
| LTMA20-540X2000 | 2000 | 2000 | 540 |
| LTMA20-680X1500 | 2000 | 1500 | 680 |
| LTMA20-680X1800 | 2000 | 1800 | 680 |
| LTMA20-680X2000 | 2000 | 2000 | 680 |
| LTPT25-520X2000 | 2500 | 2000 | 520 |
| LTPT25-680X2000 | 2500 | 2000 | 680 |
Applications
- Industrial Manufacturing: Ideal for handling large or double pallets in manufacturing settings.
- Construction Sites: Suitable for transporting long materials such as boards and glass.
- Warehousing: Efficient for moving oversized loads within warehouse facilities.
- Logistics: Enhances the capability to handle non-standard pallets during distribution.
Order Now
Enhance your material handling operations with the Extra Long Pallet Trucks - LTMA20 Range. Order today and benefit from free delivery to UK mainland (excluding Highlands & Northern Ireland).
Frequently Asked Questions
Product Specifications
1. What are the available fork lengths and widths for these pallet trucks?
The LTMA20 range offers the following configurations:
| Model | Capacity (kg) | Fork Length (mm) | Width Over Forks (mm) |
|---|---|---|---|
| LTMA20-540X1500 | 2000 | 1500 | 540 |
| LTMA20-540X1800 | 2000 | 1800 | 540 |
| LTMA20-540X2000 | 2000 | 2000 | 540 |
| LTMA20-680X1500 | 2000 | 1500 | 680 |
| LTMA20-680X1800 | 2000 | 1800 | 680 |
| LTMA20-680X2000 | 2000 | 2000 | 680 |
| LTPT25-520X2000 | 2500 | 2000 | 520 |
| LTPT25-680X2000 | 2500 | 2000 | 680 |
2. What types of loads are suitable for these pallet trucks?
The extra-long forks are ideal for handling special pallets with board, glass, or other unusually long loads. They can also be used for transporting two pallets simultaneously, providing an economical solution for handling unconventional loads.
3. Are custom sizes available?
Yes, we can manufacture special pallet truck sizes with wider or longer forks to meet specific requirements.
4. What is the weight capacity of these pallet trucks?
Depending on the model, the weight capacity ranges from 2000kg to 2500kg, accommodating various industrial applications.
5. What materials are these pallet trucks constructed from?
They feature a rugged all-steel construction with high-quality components for enhanced durability.
Usage and Operation
6. How do I operate the Extra Long Pallet Truck?
Position the forks under the pallet, use the handle to pump and raise the load, and manoeuvre as needed. The handle also controls lowering via a release valve.
7. Is the handle ergonomic for prolonged use?
Yes, it includes a heavy-duty handle designed for comfortable and efficient operation.
8. Can these pallet trucks be used on uneven surfaces?
While they perform best on smooth surfaces, their robust wheels allow limited use on slightly uneven terrain.
Maintenance and Care
9. How do I maintain the pallet truck?
Regular maintenance includes checking the hydraulic system for leaks, lubricating moving parts, and inspecting wheels for wear and tear.
10. What is the warranty for this product?
These pallet trucks come with a 12-month warranty covering manufacturing defects.
11. Are replacement parts available?
Yes, replacement parts like wheels and hydraulic components are available through our store.
Purchasing and Delivery
12. Do you offer bulk discounts for multiple units?
Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalised quote.
13. How long does delivery take?
Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.
14. Can I return the pallet truck if it doesn’t meet my needs?
Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
15. Are the Extra Long Pallet Trucks compliant with safety standards?
Yes, they meet all relevant UK and EU safety regulations.
16. Are safety guidelines included with the product?
Yes, a user manual with safety and operational guidelines is included in the packaging.
