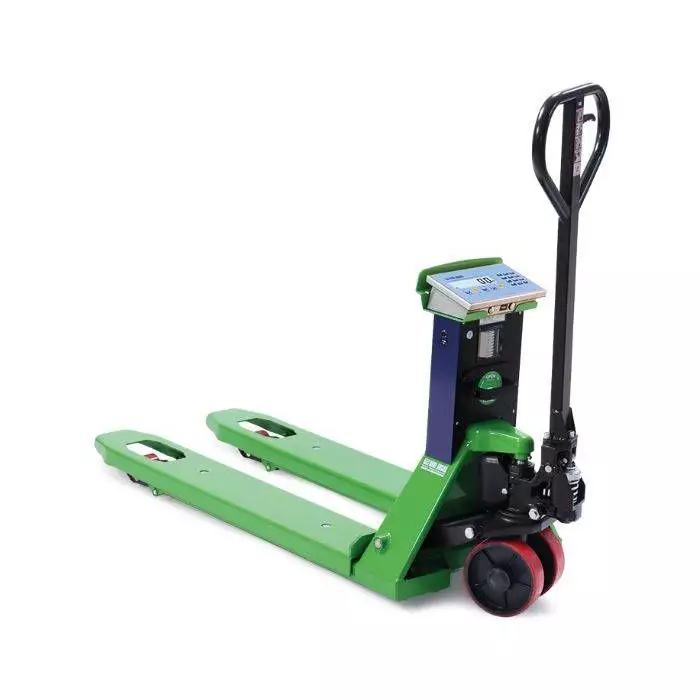

LOGISTIC SERIES PALLET TRUCK SCALE - LTGTPWLK
Professional pallet truck scale with extractable rechargeable Instaplug battery and printer for tracking the weighing operations. Available in approved version for use with third parties. Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.
LOGISTIC SERIES PALLET TRUCK SCALE
- Maximum lifting capacity: 2,000 kg.
- Resolution: > internal use: 0,2 kg, > approved: 0,5 / 1 kg
- Accuracy (weighing of goods on Europallet with distributed load): > internal use: +/- 1 kg, > approved: according to EC certification (Directive 2014/31/EU)
- Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.
- Professional pallet truck scale, approved for legal-for-trade use.
- Available with printer for tracking the weighing operations.
- Rechargeable extractable battery with "Instaplug" technology, quick connection, anti-reverse, and about 80-hour battery life (expandable for continuous use using the double battery).
- Built with 4 Dini Argeo approved IP68 stainless steel load cells.
- Programmable automatic switch-off which lengthens the working autonomy, with battery level indication.
- The large backlit 25 mm LCD display allows an easier reading also in low light conditions.
- Each pallet truck is tested and supplied with a certificate to guarantee the declared accuracy.
- Forks with low profile, only 85 mm.
- Fork dimensions 1150 x 550 x 85 mm (wide forks version upon request).
- Lifting height 200 mm.
- Weight 113 kg approx. (without packaging).
- Structure in extra-thick steel, oven-fire painted.
- Protection rating IP65 (IP20 for models with printer).
- Driving wheels and loading rollers in polyurethane.
- Waterproof and functional keyboard with 17 keys, with indications for quick recall of the main functions and adjustments.
- Quick-lift hydraulic pump allowing controlled lowering of the forks.
- Battery charger 230Vac 50 Hz with EU plug included (charging time approx. 8 hours). Optional UK, AU, US plug.
- Two-way port for modem, radio or portable terminal.
- Thermal printer in TPWLKP and TPWLKPM versions, including clock/calendar. Customizable printing format.
- Temperature of use: -10° /+40°
- The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
- Spare and wear parts always available and ready for delivery.
- Service centres throughout Europe and the world.
- Non-standard forks (both in length and width)
- Approved load capacity 600 kg, resolution 0,2 kg
- Approved load capacity 600 / 1.500 kg, resolution 0,2 / 0,5 kg
- Approved load capacity 1.500 kg, resolution 0,5 kg
- Approved load capacity 1.500 / 2.500 kg, resolution 0,5 / 1 kg
- Load capacity 2.500 kg
- Other capacities / special resolutions: upon request
- Other special versions: upon request
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
Frequently Asked Questions
General Product Information
-
What is the maximum lifting capacity of the Network Entry Level Pallet Truck Scale?
- The maximum lifting capacity is 2,000 kg.
-
What is the resolution of the weighing scale?
- The resolution is 0.2 kg for standard versions and 1 kg for the wide forks version.
-
What is the accuracy of the scale when weighing goods on Euro pallets with distributed load?
- The accuracy is ±1 kg.
-
What are the dimensions of the forks?
- Standard forks measure 1150 x 550 x 85 mm, while the wide forks version measures 1240 x 680 x 85 mm.
-
What is the lifting height of the pallet truck?
- The lifting height is 200 mm.
-
What is the weight of the pallet truck?
- The pallet truck weighs approximately 105 kg without packaging.
-
What is the construction material of the pallet truck?
- It features a steel structure with oven-fired paint.
-
What is the protection rating of the pallet truck?
- The protection rating is IP40, which increases to IP54 with the standard protective cover.
-
What type of wheels does the pallet truck have?
- It is equipped with polyurethane steering wheels and loading rollers.
-
What is the temperature range for operating the pallet truck?
- The operating temperature range is -10°C to +40°C.
Usage and Operation
-
How do I operate the Network Entry Level Pallet Truck Scale?
- Position the forks under the pallet, use the handle to pump and raise the load, and maneuver as needed. The handle also controls lowering via a release valve.
-
Is the handle ergonomic for prolonged use?
- Yes, it includes a heavy-duty handle designed for comfortable and efficient operation.
-
Can this pallet truck be used on uneven surfaces?
- While it performs best on smooth surfaces, its robust wheels allow limited use on slightly uneven terrain.
Maintenance and Care
-
What maintenance is required for the Network Entry Level Pallet Truck Scale?
- Regular maintenance includes checking the hydraulic system for leaks, lubricating moving parts, and inspecting wheels for wear and tear.
-
What is the warranty for this product?
- The pallet truck comes with a 12-month warranty covering manufacturing defects.
-
Are replacement parts available?
- Yes, replacement parts like wheels and hydraulic components are available through our store.
Purchasing and Delivery
-
Do you offer bulk discounts for multiple units?
- Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalized quote.
-
How long does delivery take?
- Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.
-
Can I return the pallet truck if it doesn’t meet my needs?
- Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
-
Is the Network Entry Level Pallet Truck Scale compliant with safety standards?
- Yes, it meets all relevant UK and EU safety regulations.
-
Are safety guidelines included with the product?
- Yes, a user manual with safety and operational guidelines is included in the packaging.
