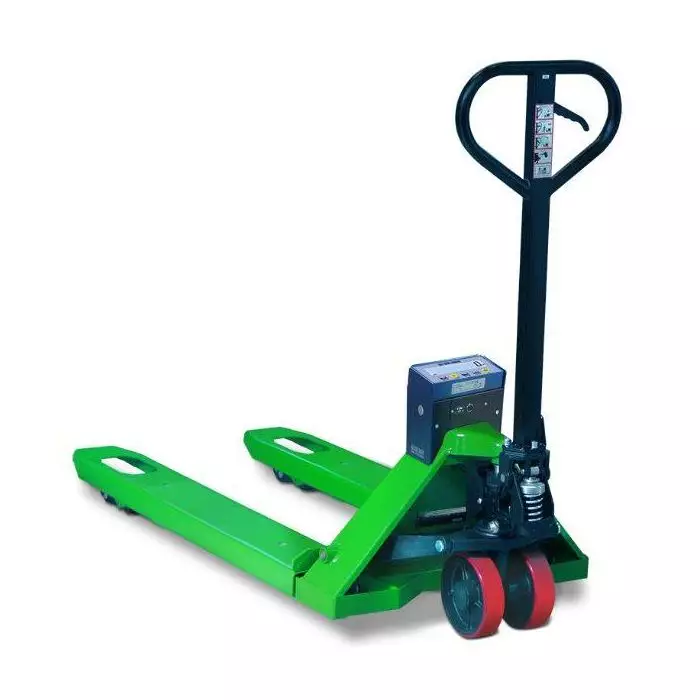

NETWORK ENTRY LEVEL PALLET TRUCK SCALE - LTTPWN RANGE

Be the first to review this product
£1,470.00
SKU
LTTPWN RANGE
In stock


Add To Favorites Add to Compare

The only entry-level pallet truck with high-end features and made-in-Italy quality. Available in versions with internal rechargeable battery, AA batteries and wide forks version for the fruit and vegetable sector. Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.

NETWORK ENTRY LEVEL PALLET TRUCK SCALE

WEIGHING FEATURES

  • Maximum lifting capacity: 2,000 kg
  • Resolution: > 0,2 kg (LTTPWNAA, LTTPWNBT version), > 1 kg (LTTPWNBTW version with wide forks)
  • Accuracy (weighing of goods on Euro pallets with distributed load): +/- 1 kg


WHY CHOOSE LTTPWN DINI ARGEO

  • The only entry level pallet truck scale that weighs with a resolution of 0.2 kg (1 kg in the wide forks version).
  • It is the lightest on the market, while maintaining a robust and rigid structure to weigh accurately.
  • The wide forks version is ideal for use in the fruit and vegetable sector.
  • The only one without junction box, with adjustment of each load cell from the display.
  • 4 Dini Argeo approved steel load cells, with IP67 protection rating.
  • The large 25 mm shockproof LCD display makes it easier to read.
  • Backlighting with automatic switch-off, adjustable from the keyboard to adapt to any working conditions.
  • Waterproof keyboard for industrial use. Protective cover as standard, for protection against water splashes.
  • Power supply via internal rechargeable battery with 80h autonomy or AA batteries with 40h autonomy for use on trucks.
  • Programmable automatic switch-off, which extends the working autonomy.
  • Each pallet truck is tested and supplied with the corresponding certificate to guarantee the declared accuracy.


TECHNICAL FEATURES

  • Low profile forks, only 85 mm.
  • Fork dimensions: - standard 1150 x 550 x 85 mm (LTTPWNAA, LTTPWNBT version), - wide 1240 x 680 x 85 mm (LTTPWNBTW version)
  • Lifting height 200 mm.
  • Weight 105 kg approx (without packaging).
  • Steel structure, oven-fire painted.
  • Protection rating IP40 (IP54 with standard protective cover).
  • Steering wheels and loading rollers in poliurethane.
  • 5-key waterproof keyboard.
  • Quick-lift hydraulic pump allowing controlled lowering of the forks.
  • Battery charger with EU plug included (charging time approx. 8 hours). Optional UK, AU, US plug (for TPWNBT and TPWNBTW versions).
  • Temperature range: -10° /+40°


THE EASIEST ONE TO RECALIBRATE AND REPAIR

  • The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
  • Spare and wear parts always available and ready for delivery.
  • Service centres throughout Europe and the world.


MAIN FUNCTIONS

  • Weighing functions: Zeroing, Tare, Preset Tare.
  • Operating modes selectable directly by the user, via dedicated button:
- lb/kg conversion
- Free conversion factor (meter counter, litre counter, etc)
- Weight totalisation
- Piece counting
- Hold.
More Information
Shipping For Product 0.000000
Calculate Shipping Per Product Quantity
Enable Shipping Per Product No


Frequently Asked Questions

General Product Information

  1. What is the maximum lifting capacity of the Network Entry Level Pallet Truck Scale?

    • The maximum lifting capacity is 2,000 kg.

  2. What is the resolution of the weighing scale?

    • The resolution is 0.2 kg for standard versions and 1 kg for the wide forks version.

  3. What is the accuracy of the scale when weighing goods on Euro pallets with distributed load?

    • The accuracy is ±1 kg.

  4. What are the dimensions of the forks?

    • Standard forks measure 1150 x 550 x 85 mm, while the wide forks version measures 1240 x 680 x 85 mm.

  5. What is the lifting height of the pallet truck?

    • The lifting height is 200 mm.

  6. What is the weight of the pallet truck?

    • The pallet truck weighs approximately 105 kg without packaging.

  7. What is the construction material of the pallet truck?

    • It features a steel structure with oven-fired paint.

  8. What is the protection rating of the pallet truck?

    • The protection rating is IP40, which increases to IP54 with the standard protective cover.

  9. What type of wheels does the pallet truck have?

    • It is equipped with polyurethane steering wheels and loading rollers.

  10. What is the temperature range for operating the pallet truck?

    • The operating temperature range is -10°C to +40°C.

Usage and Operation

  1. How do I operate the Network Entry Level Pallet Truck Scale?

    • Position the forks under the pallet, use the handle to pump and raise the load, and maneuver as needed. The handle also controls lowering via a release valve.

  2. Is the handle ergonomic for prolonged use?

    • Yes, it includes a heavy-duty handle designed for comfortable and efficient operation.

  3. Can this pallet truck be used on uneven surfaces?

    • While it performs best on smooth surfaces, its robust wheels allow limited use on slightly uneven terrain.

Maintenance and Care

  1. What maintenance is required for the Network Entry Level Pallet Truck Scale?

    • Regular maintenance includes checking the hydraulic system for leaks, lubricating moving parts, and inspecting wheels for wear and tear.

  2. What is the warranty for this product?

    • The pallet truck comes with a 12-month warranty covering manufacturing defects.

  3. Are replacement parts available?

    • Yes, replacement parts like wheels and hydraulic components are available through our store.

Purchasing and Delivery

  1. Do you offer bulk discounts for multiple units?

    • Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalized quote.

  2. How long does delivery take?

    • Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.

  3. Can I return the pallet truck if it doesn’t meet my needs?

    • Yes, we have a 30-day return policy. The product must be in its original condition and packaging.

Safety and Regulations

  1. Is the Network Entry Level Pallet Truck Scale compliant with safety standards?

    • Yes, it meets all relevant UK and EU safety regulations.

  2. Are safety guidelines included with the product?

    • Yes, a user manual with safety and operational guidelines is included in the packaging.
